High Voltage Transformer

Get a Price/Quote

Product Details:

Low Voltage 415V
Load Loss 1.6 kW
Dimension (L*W*H) 1100mm x 850mm x 1350mm
Rated Voltage 11kV / 0.415kV
Capacity 200 kVA
Coil Material 99.9% pure copper
High Voltage Up to 100kV
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

High Voltage Transformer Product Specifications

Output 10kV to 100kV
High Voltage Up to 100kV
Usage High voltage electrical applications, power supply units, and industrial equipment
Power Scope Up to 500kVA
Capacity 200 kVA
Frequency (MHz) 5060
Phase Single and Three phase options available
Coil Number 2 (Primary & Secondary)
Coil Material 99.9% pure copper
Dimension (L*W*H) 1100mm x 850mm x 1350mm
Rated Voltage 11kV / 0.415kV
Efficiency 98%
Weight 350 kg
Load Loss 1.6 kW
Low Voltage 415V
Coil Structure Toroidal and Layered
Product Type High Voltage Transformer

Product Description

Owing to our affluent industry know-how and understanding, we are occupied in presenting a wide array of high quality High Voltage Transformer in India. Manufactured by using most favorable quality components and modern technology, these are used for supplying power in various industries and places. At our well-developed testing unit, these High Voltage Transformer are carefully examined by team of experienced quality inspectors on predetermined parameters that make sure its durability and performance. We offer these finest quality products at industry leading prices.

Engineered for Reliability

Featuring high dielectric strength and Class F insulation, this transformer is built for exceptional reliability in high voltage scenarios. Withstanding up to 200kV and supporting overloads, it provides peace of mind in critical industrial settings.

Efficient and Quiet Operation

Designed with double-layer windings and a CRGO core, the transformer offers an impressive 98% efficiency and maintains a noise level below 65 dB, ensuring minimal operational disruptions even during peak performance.

Versatile Installation and Use

Suitable for floor mounting, this transformer accommodates both single- and three-phase configurations. It fits seamlessly into industrial equipment, high voltage electrical applications, and power supply units, providing robust output from 10kV to 100kV.

FAQs of High Voltage Transformer:

Q: How does the double-layer winding benefit transformer performance?

A: The double-layer winding structure in this transformer enhances magnetic flux distribution, reduces leakage inductance, and improves efficiency, performance, and reliability, particularly in high voltage and high-capacity applications.

Q: What industries typically use this high voltage transformer?

A: Industries such as power generation, manufacturing plants, heavy engineering, and infrastructure projects commonly use this transformer for its robust design, high efficiency, and adherence to IEC 60076 standards.

Q: When should the transformer be operated at overload capacity?

A: The transformer is designed for 120% overload capacity for up to 2 hours, intended for short-term power demand spikes. Prolonged overload should be avoided to maintain longevity and safety.

Q: Where can the transformer be installed?

A: This transformer is floor-mounted and suitable for indoor environments with ambient humidity below 95% RH. The IP23 protection grade makes it appropriate for well-ventilated industrial spaces but not for outdoor exposed installations.

Q: What is the process for testing the transformers dielectric strength?

A: Dielectric strength testing is conducted by applying a test voltage of 125kV AC, ensuring the insulation can withstand voltages significantly above operational levels, providing safety and compliance with IEC 60076 guidelines.

Q: How do the noise level and efficiency impact operational benefits?

A: A noise level under 65 dB minimizes workplace disturbances, and 98% efficiency ensures most input power is delivered as output, reducing operational costs and enhancing energy savings.

Q: What are the main benefits of using CRGO core and 99.9% pure copper coils?

A: A CRGO core reduces core losses and improves magnetic characteristics, while 99.9% pure copper coils offer superior conductivity and lower resistance, ensuring long-term efficiency and high output stability.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Transformers' category

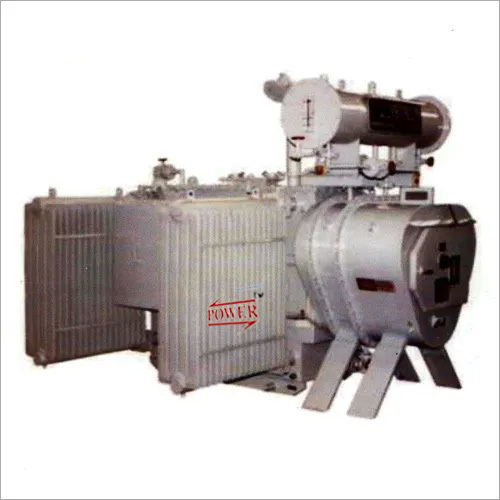

Three Phase Distribution Transformer with O.L.T.C Power Scope : Up to 2500 kVA Output : Three Phase, AC Output High Voltage : 11 kV, 22 kV, or 33 kV Usage : Industrial and Utility Power Distribution Capacity : 100 kVA to 2500 kVA Frequency (MHz) : 50 Hz Phase : Three Phase Coil Number : Other, 2 to 3 (as per design) Dimension (L*W*H) : As per rating, generally 2200 x 1800 x 2100 mm (for 1000 kVA) Rated Voltage : 11 kV/22 kV/33 kV Product Type : Other, Distribution Transformer with OLTC (On Load Tap Changer) Load Loss : As per IS1180/IEC standards (e.g., 3.4 kW at 1000 kVA/11 kV) Low Voltage : 0.433 kV Material : Copper Wound, CRGO Silicon Steel Core Coil Material : Other , Electrolytic Grade Copper Voltage Booster Type : Other, On Load Tap Changer (OLTC) Weight : Varies with capacity, typically 2000 to 5000 kg Coil Structure : Other, Double Wound Operating Temperature : 5C to +50C Cooling Type : ONAN/ONAF (Oil Natural Air Natural/Oil Natural Air Forced) Efficiency : Up to 99% Standard : IS 1180, IEC 60076

Send Inquiry

Electrical Power Transformer Power Scope : Up to 2500 kVA Output : Customized as per requirement High Voltage : 11 kV 33 kV Usage : Power Distribution and Transmission Capacity : Up to 2500 kVA Frequency (MHz) : 50 / 60 Hz Phase : Three Phase Coil Number : Double Winding Dimension (L*W*H) : Customized as per capacity Rated Voltage : 11 kV / 22 kV / 33 kV Product Type : Other, Electrical Power Transformer Load Loss : Low, as per IS standards Low Voltage : 415 V 690 V Material : Copper and Silicon Steel Core Coil Material : Other , High Grade Copper Voltage Booster Type : Other, On Load Tap Changer (optional) Weight : Varies by rating (approx. 15004500 kg) Coil Structure : Toroidal Operating Temperature : 25C to 55C Cooling Type : ONAN (Oil Natural Air Natural) Efficiency : 98.5% Standard : IS 2026 / IEC 60076

Send Inquiry

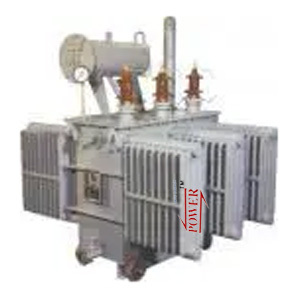

Electrical Distribution Transformer Power Scope : Industrial Power Distribution Output : AC Power High Voltage : 33 kV Usage : Electric Grid Distribution Capacity : 1000 kVA Frequency (MHz) : 50 Hz Phase : Three Phase Coil Number : Other, Two Coils Dimension (L*W*H) : 2200x1500x2000 mm Rated Voltage : 11 kV Product Type : Electrical Distribution Transformer, Other Load Loss : 1.5% Low Voltage : 0.433 kV Material : Mild Steel Outer Body Coil Material : Other , Copper Voltage Booster Type : Automatic Onload Tap Changer, Other Weight : 2500 kg Coil Structure : Other, Cylindrical Wound Operating Temperature : Up to 105C Cooling Type : Oil Immersed Cooling
