Industrial Distribution Transformer

Get a Price/Quote

Product Details:

Dimension (L*W*H) 1800 x 1200 x 1700 mm (varies by rating)
Rated Voltage 11 kV / 0.415 kV
Capacity 100 KVA to 2500 KVA
Load Loss As per IS 1180 standards
High Voltage 11,000 V
Low Voltage 415 V
Coil Material Electrolytic Grade Copper
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Industrial Distribution Transformer Price And Quantity

Industrial Distribution Transformer Product Specifications

Product Type Oil Cooled Distribution Transformer
Dimension (L*W*H) 1800 x 1200 x 1700 mm (varies by rating)
Rated Voltage 11 kV / 0.415 kV
Output Customized Output as per Application
Capacity 100 KVA to 2500 KVA
Usage Industrial Power Distribution
Coil Number Double Winding
Load Loss As per IS 1180 standards
Weight Approx. 1500 to 2200 kg depending on rating
Power Scope Upto 2500 KVA
Efficiency Greater than 98%
Phase Three Phase
High Voltage 11,000 V
Frequency (MHz) 50 Hz
Low Voltage 415 V
Coil Structure Toroidal
Coil Material Electrolytic Grade Copper

Product Description

Distribution Transformer

We are actively affianced in manufacturing and supplying high performance Distribution Transformer with the aim to meet the diverse requirements of various industries. These transformers are manufactured in adherence to the IS & IEC quality standards by utilizing best quality of components and sophisticated technology at our premises. Available in various technical specifications, this Distribution Transformer is widely used by housing complexes, industrial sector and in state electricity boards for the purpose of supplying power.

Specification

Power Rating	200kVA
Number of Phase	3-Phase
Cooling Type	Oil Cooled
Winding Material	Copper
Insulation Class	A
Winding Turns	Variable
Transformer Type	Sealed
Country of Origin	Made in India

High Efficiency for Reliable Industrial Operations

Operating at frequencies of 50 Hz and delivering efficiencies greater than 98%, this transformer ensures minimal energy loss during industrial power distribution. Its robust design and advanced coil structure enable consistent performance, reducing downtime and optimizing productivity in manufacturing plants.

Customizable Power Output to Suit Your Needs

With a power scope reaching up to 2500 KVA and both high (11,000 V) and low (415 V) voltage ratings, the transformer can be tailored to match specific industrial requirements. Manufacturers offer flexible output customization for seamless integration into existing infrastructure.

Built with Premium Materials and Standards

Constructed using electrolytic grade copper and rigorously designed per IS 1180 load loss specifications, this transformer promises durability and efficiency. The toroidal double winding coil structure further ensures stable power delivery while complying with national safety and performance standards.

FAQs of Industrial Distribution Transformer:

Q: How is the Industrial Distribution Transformer used in industrial power distribution?

A: The transformer steps down high voltage (11 kV) to usable low voltage (0.415 kV) for industrial machinery and facilities. It is installed at power entry points, distributing electricity efficiently across the plant while maintaining voltage stability and safety.

Q: What efficiency does the transformer offer and why is it beneficial for industrial operations?

A: With greater than 98% efficiency, the transformer minimizes energy loss during operation. This high efficiency reduces operational costs and ensures an uninterrupted power supply, critical for maintaining productivity in industrial environments.

Q: When should you consider customizing the transformers output?

A: Customization is recommended when your application requires specific voltage, capacity, or output settings not covered by standard ratings. It allows seamless adaptation to specialized industrial processes, improving both compatibility and performance.

Q: Where are these transformers typically manufactured and supplied?

A: These transformers are manufactured and supplied across India by experienced industrial equipment providers. They cater to industries nationwide, with adherence to IS 1180 standards and the use of high-quality copper materials.

Q: What is the process of installation and commissioning for this transformer?

A: Installation involves positioning the transformer according to its dimensions, ensuring proper electrical connections, and grounding for safety. Commissioning includes performance testing against rated parameters (voltage, capacity, load loss) before integration into main power supply systems.

Q: How does the toroidal coil structure benefit industrial applications?

A: The toroidal coil structure provides enhanced magnetic efficiency, resulting in lower electromagnetic interference and heat generation. This design ensures stable power delivery, higher reliability, and longer operational life for heavy-duty applications.

Q: What standards and materials are used in coil construction and how do they impact performance?

A: The coils are crafted from electrolytic grade copper and designed as double winding per IS 1180 standards for load loss. These materials and standards ensure high conductivity, durability, and optimal performance under varying industrial loads.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Transformers' category

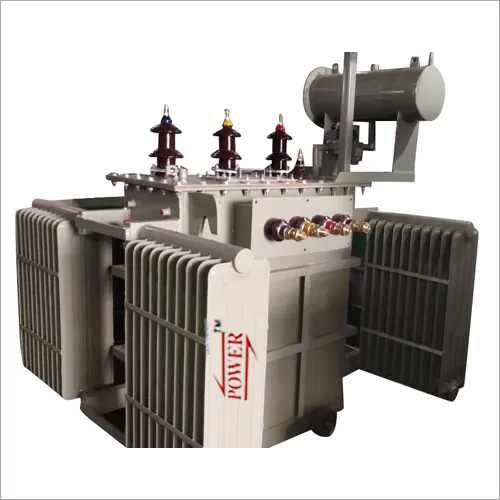

Electrical Power Transformer Load Loss : Low, as per IS standards Low Voltage : 415 V 690 V High Voltage : 11 kV 33 kV Phase : Three Phase Weight : Varies by rating (approx. 15004500 kg) Power Scope : Up to 2500 kVA Coil Number : Double Winding Coil Material : Other , High Grade Copper Frequency (MHz) : 50 / 60 Hz Material : Copper and Silicon Steel Core Rated Voltage : 11 kV / 22 kV / 33 kV Dimension (L*W*H) : Customized as per capacity Product Type : Other, Electrical Power Transformer Usage : Power Distribution and Transmission Capacity : Up to 2500 kVA Coil Structure : Toroidal Voltage Booster Type : Other, On Load Tap Changer (optional) Output : Customized as per requirement Operating Temperature : 25C to 55C Efficiency : 98.5% Cooling Type : ONAN (Oil Natural Air Natural)

Send Inquiry

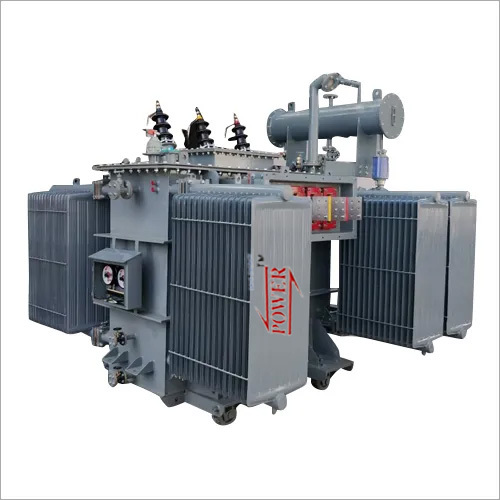

Industrial Power Transformer Load Loss : Low Low Voltage : 400 V 415 V High Voltage : 11 kV 33 kV Phase : Three Phase Weight : Variable (based on capacity) Power Scope : Industrial Usage Coil Number : Other, Multiple Coil Material : Copper, Other Frequency (MHz) : 50 Hz Material : HighGrade Steel Frame Rated Voltage : 11 kV/400 V Dimension (L*W*H) : Variable (based on capacity) Product Type : Industrial Power Transformer, Other Usage : Industrial Capacity : 500 kVA 10000 kVA Coil Structure : Other, Layer Wound Voltage Booster Type : Automatic, Other Output : AC Operating Temperature : Up to 55C Cooling Type : Oil Cooled
