Gel Earthing Electrodes

Name: Gel Earthing Electrodes
Brand: ARORA ELECTRICALS
Price: 3000 INR
Availability: InStock

3000 INR/Piece

Get a Price/Quote

Product Details:

Tensile Strength At least 600 MPa
Copper Thickness 100 microns to 250 microns
Purity Up to 99.9% Copper Purity (for copper rod type)
Life Span 15 to 30 Years
Strength High Tensile Strength
Diameter 40mm / 48mm / 76mm (as specified)
Product Type Gel Earthing Electrode
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Gel Earthing Electrodes Price And Quantity

Price 3000 INR/Piece
Minimum Order Quantity 1 , , Piece

Gel Earthing Electrodes Product Specifications

Diameter 40mm / 48mm / 76mm (as specified)
Function Grounding and Electrical Earthing
Color Grey / Metallic
Shape Rectangular / Cylindrical
Strength High Tensile Strength
Dimension (L*W*H) Length: 1m to 3m; Width & Height as per specification
Weight 10 kg to 50 kg (varies as per model)
Surface Treating Hot Dip Galvanized / Copper Coated
Application Industrial, Commercial, Residential Earthing
Life Span 15 to 30 Years
Material Mild Steel with Copper Coating / Galvanized Iron / Steel
Tensile Strength At least 600 MPa
Product Type Gel Earthing Electrode
Purity Up to 99.9% Copper Purity (for copper rod type)
Tolerance 1% on length & diameter
Copper Thickness 100 microns to 250 microns

Gel Earthing Electrodes Trade Information

Supply Ability 100 , , Piece Per Day
Delivery Time 2-3 Days
Main Domestic Market All India

Product Description

Gel Earthing Electrodes

We are one of the renowned manufacturer and suppliers of Gel Earthing Electrodes that are fabricated as per international quality standards. We also ensure that customization is done as per the specification and requirements of our customers. Gel Earthing Electrodes offered by us is used for serving various industrial applications in ear thing systems that offers a complete solution to their ground requirements. These electrodes are known for its low resistance value for long period of time with negligible fluctuations.

Specification

Length of Rod	ANY
Usage/Application	Transformer
Diameter	ANY
Material	Copper, Zinc, Galvanized Iron (GI)
Size of Conductor	ANY
Condition	New

Advanced Grounding Solution

Gel Earthing Electrodes provide robust and stable electrical grounding, catering to varied environments such as industries, offices, and residential complexes. Their engineered design ensures a low-resistance path to dissipate fault currents safely, enhancing overall installation safety and system reliability.

Superior Construction & Longevity

These electrodes are crafted from high-quality steel, either galvanized or copper coated, offering high tensile strength and resistance to corrosion. Their dimensional versatility, with multiple sizes and weights, makes them adaptable to site-specific requirements, ensuring a long effective lifespan ranging from 15 to 30 years.

Optimal Performance Across Applications

Designed for use in industrial, commercial, and residential earthing systems, Gel Earthing Electrodes deliver consistent electrical performance. High copper purity versions maximize conductivity, while the maintenance-free gel filling and protective surfaces improve reliability and ease of installation.

FAQs of Gel Earthing Electrodes:

Q: How are Gel Earthing Electrodes installed for grounding purposes?

A: Gel Earthing Electrodes are installed vertically in pre-dug earth pits at the selected location. After placing the electrode, a special backfill compound (gel) is packed around it to promote conductivity and maintain long-term moisture, ensuring effective electrical grounding for industrial, residential, or commercial systems.

Q: What are the key benefits of using Gel Earthing Electrodes over traditional earth rods?

A: Gel Earthing Electrodes offer superior conductivity, corrosion resistance, and require minimal maintenance due to their robust construction and protective coatings. The gel backfill ensures consistent ground contact and low resistance over the electrodes long life span, making them highly reliable compared to conventional earth rods.

Q: Where can Gel Earthing Electrodes be used?

A: These electrodes are suitable for widespread application including industrial facilities, commercial buildings, and residential complexes. Their high tensile strength and multiple size options make them ideal for diverse environments that require stable and efficient electrical earthing.

Q: What is the process for selecting the right Gel Earthing Electrode model?

A: Selection depends on site-specific requirements like soil condition, expected fault currents, and the dimensions available for installation. Parameters such as length (1m3m), diameter (40mm, 48mm, 76mm), weight, and copper thickness (100250 microns) should be matched to the applications needs for optimal results.

Q: When should Gel Earthing Electrodes be replaced?

A: With a life expectancy ranging from 15 to 30 years, these electrodes typically do not require frequent replacement. Monitoring should be performed periodically, and replacement is needed if the electrode exhibits signs of physical damage, excessive corrosion, or if earth resistance readings exceed safe limits.

Q: What material and surface treatments are used for Gel Earthing Electrodes?

A: The electrodes are manufactured using mild steel with either a hot dip galvanized layer or copper coating. Copper-coated versions can achieve up to 99.9% copper purity with thicknesses from 100 to 250 microns, enhancing both conductivity and corrosion resistance.

Q: How do Gel Earthing Electrodes maintain high tensile strength and longevity?

A: These electrodes are made from high-tensile steel with a minimum tensile strength of 600 MPa. Their surface is further protected with either copper coating or galvanization, preventing corrosion and extending operational lifespan, even in harsh soil conditions.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Earthing Electrodes' category

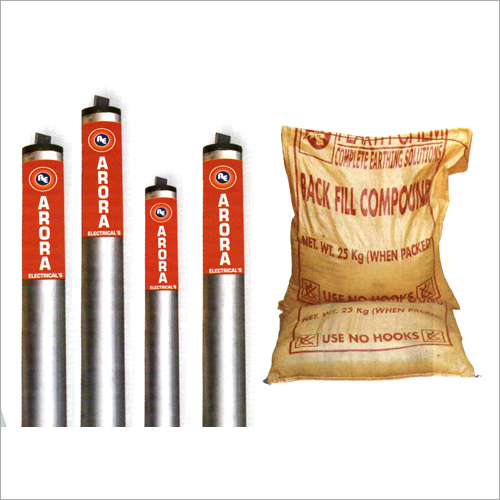

Copper Chemical Earthing Rods Price : 4000 INR/Piece Minimum Order Quantity : 1 Diameter : 14 mm, 17 mm, 25 mm (or as needed) Dimension (L*W*H) : Length: 10003000 mm (customized), Diameter as specified Strength : High tensile strength (as per IS 3043) Shape : Round/Rod Function : Protection against electrical surges and fault currents by providing efficient grounding Color : Copper brown Life Span : 3040 years under proper soil conditions Application : Earthing system for electrical installations, substations, power plants, industrial, and commercial buildings Copper Thickness : 250254 microns (minimum 99.9% pure copper layer) Tolerance : Minimal, according to standards IS 3043 Purity : Copper layer minimum 99.9% Product Type : Copper Chemical Earthing Rod Material : other, High purity copper bonded steel Tensile Strength : 600 N/mm Weight : Depends on length and diameter (typically 28 kg per rod) Surface Treating : Copper bonded, corrosion resistant finish

Send Inquiry

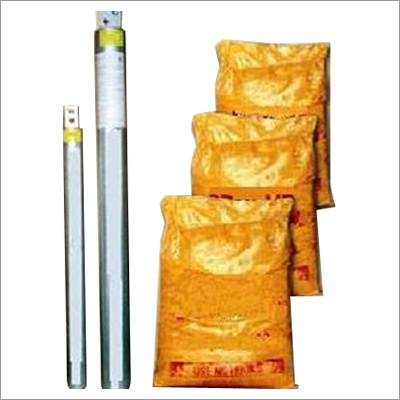

Earthing Electrode With Bags Price : 4000 INR/Piece Minimum Order Quantity : 1 Diameter : 40 mm, 50 mm, 80 mm, or as specified Dimension (L*W*H) : 1000 mm x 80 mm (height x diameter), as per requirement Strength : High mechanical strength for direct earth contact Shape : Round rod with cylindrical bags Function : Provides efficient Earthing and grounding for electrical installations Color : Metallic Grey (Electrode); Brown/White (Bag) Life Span : More than 30 years under normal soil conditions Application : Electrical Substations, Power Plants, Residential & Industrial Buildings, Telecom Towers, Lightning Protection Copper Thickness : 100 to 254 microns (for Copper bonded type) Tolerance : 5% Purity : Copper purity above 99.9% for copper bonded type Product Type : Earthing Electrode With Bags Material : other, Galvanized Iron / Copper Bonded Steel Tensile Strength : Over 600 N/mm
